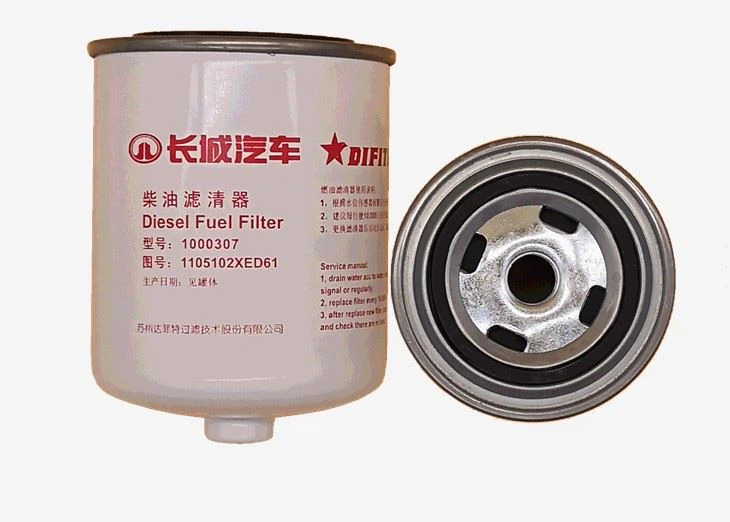

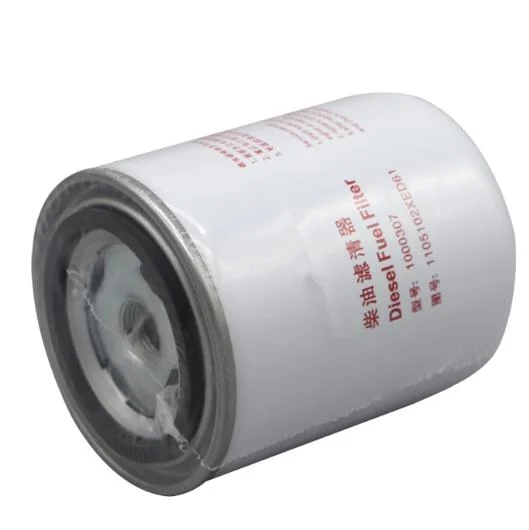

OE: 1105100XED61 Fuel Pre-Filter for Haval H9 Diesel | GWM

The OE: 1105100XED61 fuel pre-filter is engineered for the Haval H9 diesel, supporting its high-pressure common-rail injection system with reliable first-stage filtration.
This component removes coarse contaminants and separates water before fuel reaches the secondary fine filter, protecting the injection pump and injectors from premature wear.
The design ensures strong filtration performance for vehicles operating in off-road, towing, and mixed urban–highway environments where diesel quality may vary.

Compatibility

The pre-filter fits Haval H9 diesel models from 2017 onward, designed for export markets using the 2.0-liter turbo diesel engine family.
Its housing structure and inlet/outlet configuration follow the H9 diesel platform layout, offering direct compatibility with fuel routing on ladder-frame SUV applications.
The XED-series designation indicates an updated version within the H9 diesel pre-filter family, ensuring compatibility with modernized injection hardware and improved water-management capability.

Filtration / Material / Mechanical Design

The filter uses a multi-stage diesel filtration medium optimized for coarse particulate removal and water separation.
A reinforced metal enclosure withstands vibration and pressure fluctuations common during off-road use and high-load driving.
Internal water-separation chambers reduce moisture accumulation, supporting stable pump operation and preventing injector scoring.
The OE-spec connection geometry ensures correct alignment and sealing, allowing quick and accurate installation for workshop technicians.
The filter maintains structural integrity across extreme temperature ranges, supporting long-distance and high-duty applications.

Flow Stability & Engine Protection

Stable fuel flow is essential for the H9’s common-rail system.
The pre-filter reduces the risk of cavitation, protects the injection pump from abrasive particles, and helps maintain consistent fuel delivery during steep climbs or low-speed off-road maneuvers.
Cleaner pre-filtration contributes to smoother engine idle, improved cold-start reliability, and reduced noise across the injection system.
It also enhances the lifespan of the secondary filter and downstream components.

Interchangeable OE Numbers (Cross-Reference)

• 1105100AED61

• 1105100XED50

• 1105100XED51

Maintenance Replacement (Official Interval)

Based on diesel maintenance guidelines for H9 export models:
Replace approximately every 20,000 km, or earlier if contaminated fuel is common.
In markets with inconsistent diesel quality, a proactive interval of 10,000–15,000 km is recommended.
Technicians should check for moisture accumulation and debris during routine inspections.
