Tank 300 Front Wheel Bearing / Hub 3103100XKM01A

Overview

The 3103100XKM01A front wheel bearing hub supports Tank 300 front-wheel assembly replacement enquiries. Manufacturer catalogs identify this OE with a complete hub-and-bearing assembly, not a loose bearing. Therefore, purchasing teams should distinguish the assembled unit from a bare hub flange before comparing quotations.

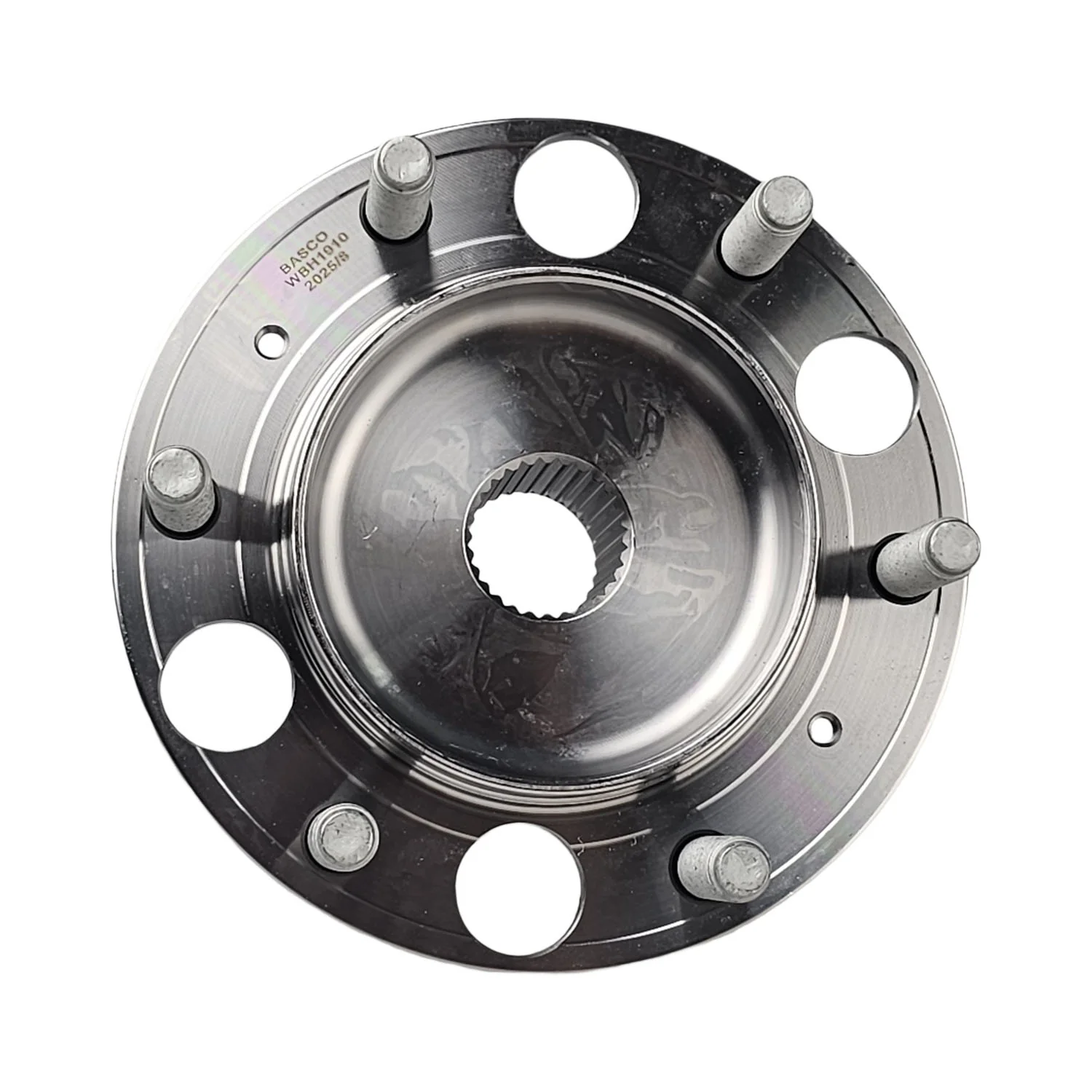

Tank 300 front wheel bearing hub form

This product definition combines the wheel hub and bearing within one assembly. The bearing supports wheel rotation, while the hub provides the wheel attachment interface. However, an OE match alone does not establish every dimension, sensor component or supplied accessory. For a Bilink Auto Parts enquiry, describe the required assembly rather than requesting an unspecified wheel bearing.

Vehicle & Application

3103100XKM01A front wheel bearing hub identity

The verified identity is a Tank 300 front hub-bearing assembly under Primary OE 3103100XKM01A. Engine, model year, drivetrain and market configuration remain vehicle-specific confirmation items. Accordingly, provide the VIN, existing part marking and relevant vehicle details before order approval.

Catalog applications support this product identity; individual vehicle versions still require confirmation. In particular, a supplier’s application table does not replace confirmation against the vehicle receiving the replacement. Photographs of the original assembly can also help distinguish its interfaces from a similar-looking variant.

Related OE References

Primary OE: 3103100XKM01A. No Alternate OE has verified interchange evidence for this product. Likewise, no Related OE currently has enough separate product-and-fitment evidence for a customer-facing recommendation. Keep other discovered numbers outside the order specification until their relationships have independent support. This prevents an unverified number from becoming an assumed substitute.

Basic Quality & Supply

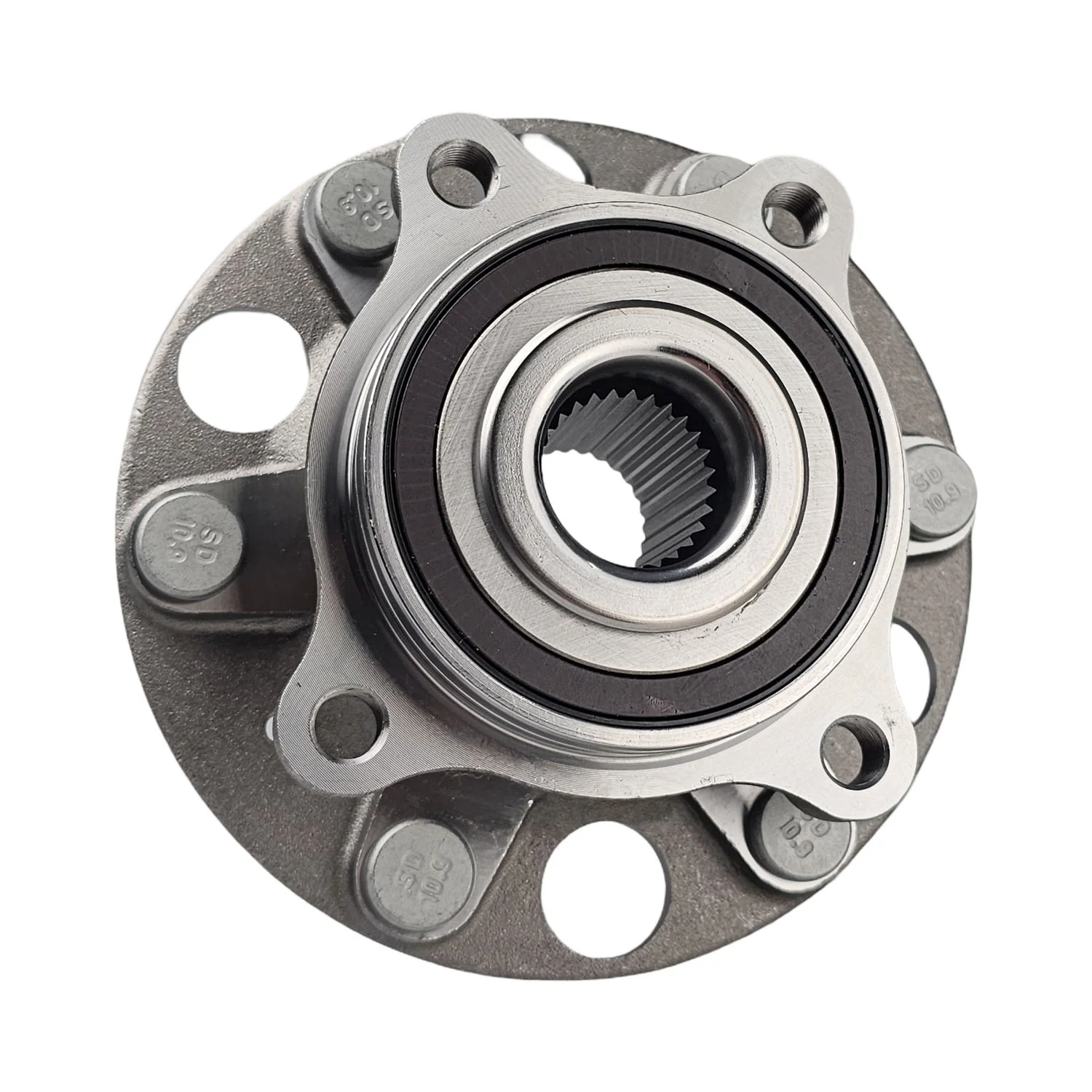

Tank 300 front wheel bearing hub interfaces

TRIALLI’s MR 3083 catalog reference lists a 167 mm outer diameter and wheel PCD of 6×139.7. It also lists four mounting holes and M12x1.5 wheel fastening. These values describe that manufacturer’s reference product, not universal specifications for every assembly bearing this OE.

Importantly, TRIALLI’s MR 3083 catalog describes four mounting holes and a separate six-position wheel pattern. The mounting-hole count concerns attachment of the hub assembly, whereas the wheel pattern concerns the wheel interface. Therefore, compare the offered unit’s drawing with the relevant interface, not merely a single hole count.

Likewise, TRIALLI’s MR 3083 reference gives a 167 mm outer diameter and 6×139.7 PCD, not competing diameter measurements. The PCD describes the wheel fixing pattern, while outer diameter describes another catalog dimension. Ask the supplier to identify both measurements on the offered drawing. This avoids accepting a matching wheel pattern as proof that the entire hub geometry matches.

Also confirm the ABS interface, spline geometry and included hardware. The available catalog data does not establish sensor inclusion for the offered assembly. Consequently, avoid assuming that a listed ABS field specifies an included sensor or a proven signal-ring tooth count.

Confirm the requested sourcing category: genuine, OEM or aftermarket. Genuine concerns automaker branding, while an OEM description requires confirmation of the claimed manufacturing relationship. Do not assume either grade from OE 3103100XKM01A alone. Instead, agree the offered assembly’s specification and supporting inspection information.

Packaging & Ordering

For bulk procurement, identify 3103100XKM01A separately from loose bearings and bare hubs on the purchase list. Also specify how labels should distinguish the complete Tank 300 assembly in mixed orders. Ask how packaging will protect its wheel attachment and mounting interfaces during handling.

For quotation, provide quantity, destination and the requested supply specification. Then confirm packaging, MOQ, mixed-SKU terms and availability with the supplier. No fixed commercial terms or delivery commitments form part of this product description.

Ordering FAQ

Does the Tank 300 front wheel bearing hub replace a loose bearing?

The verified product definition is a complete hub-bearing assembly. Therefore, do not compare its quotation directly with a loose bearing or bare flange. Confirm the required service scope against the removed part.

Why does the Tank 300 front wheel bearing hub reference show two hole counts?

TRIALLI MR 3083 lists four mounting holes and a 6×139.7 wheel PCD. They describe different attachment interfaces. Accordingly, check both locations on the offered assembly’s drawing rather than treating the counts as contradictory.

Does the 3103100XKM01A front wheel bearing hub include an ABS sensor?

Sensor inclusion has not been verified for the offered unit. Instead, request photographs and a written component list covering the ABS interface and supplied hardware. Also provide the vehicle configuration so the supplier can address the specific enquiry.
